Mechanical strength of thin bottom
Test piece
As the right figures
L:50.0mm W:6.0mm h:0.5mm，1.0mm，2.0mm，4.0mm ,
Test condition
(1)at Room temperature
(2)After 250 ℃×500hr. treatment
Test method
JIS K 6911
Fulcrum distance:30mm |
 |

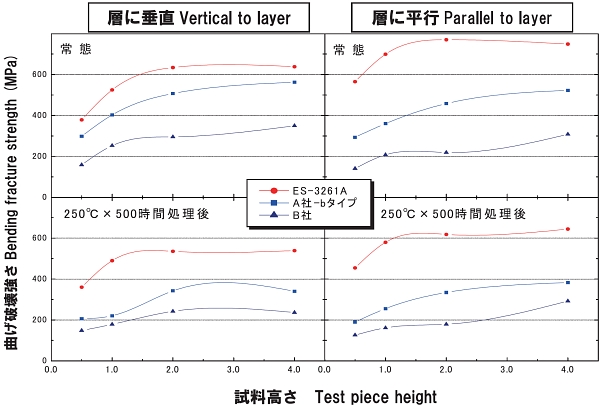

Test result
 |
Considering the thin bottom pallet ,mechanical strength of 0.5mm～4.0mm thickness test piece was measured.
RICOCEL/ES-3261A is excellent in mechanical strength under RT as well as after heat treatment. |
|
