Insulating material / Industrial plastic

Mechanical strength of thin wall

リコセル
Test piece
a)RICOCEL / ES-3261A/ 6.0mm (Anti-static)
b)A's b type / 6.0mm (Anti-static)
Test method

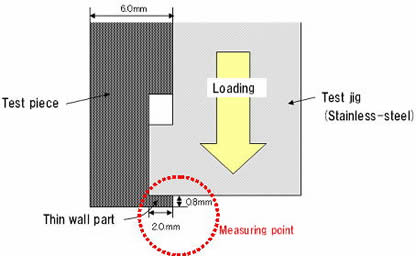

Break maximum load of thin wall part was measured as follows.

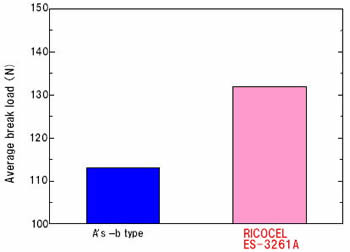

Test result

Test times A's-b type RICOCEL
ES-3261A
1 90 128
2 105 150
3 123 160
4 100 91
5 105 137
6 134 112
7 113 127
8 122 142
9 139 130
10 99 142
Avg. 113 132
Max. 139 160
Min. 90 91

Materials for comparison

Solder pallet made of RICOCEL is excellent in mechanical strength even at thin wall part.
