rishocast

Round window type CT　(11.5kV)

ＥＲ－４８　／　ＥＲ－８０

○Cable / Busbar through type

○For ammeter / For relay

○Indoor use
ER-48 ER-80

▲ER-48

▲ER-80
Type

Ratio

(A)

 Rated output
(VA)		 Accuracy class Insulation level
(kV)		 Applicable standard of production
IEC-185 IEC 60044-1
IEC 61869-2
ER-48 100 ～ 200 / 5 , 1 30 3 / 10P10 12 / 28 / 75 ○ ○
300 ～ 4000 / 5 , 1 1.0 / 5P10
ER-80 5000 ～6000 / 5 , 1
Cable or Busbar should be installed with clearance of more than 13mm from surface of the wall.　
ER-48 ER-48

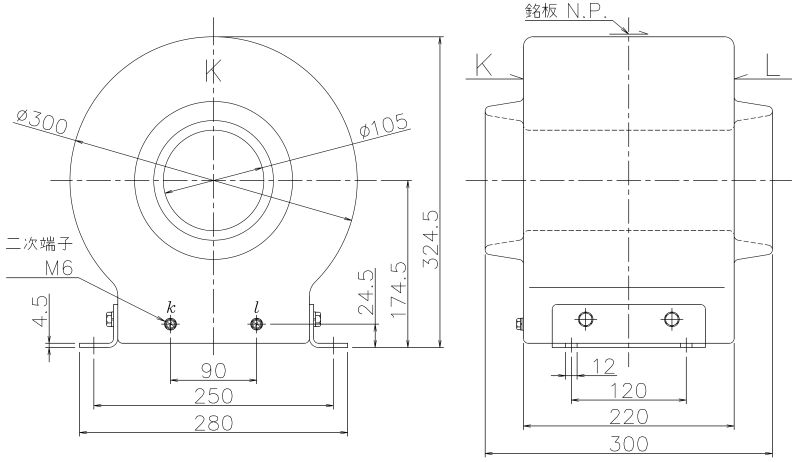

▲ER-48(A)

▲ER-48(B)
ER-48 ER-80

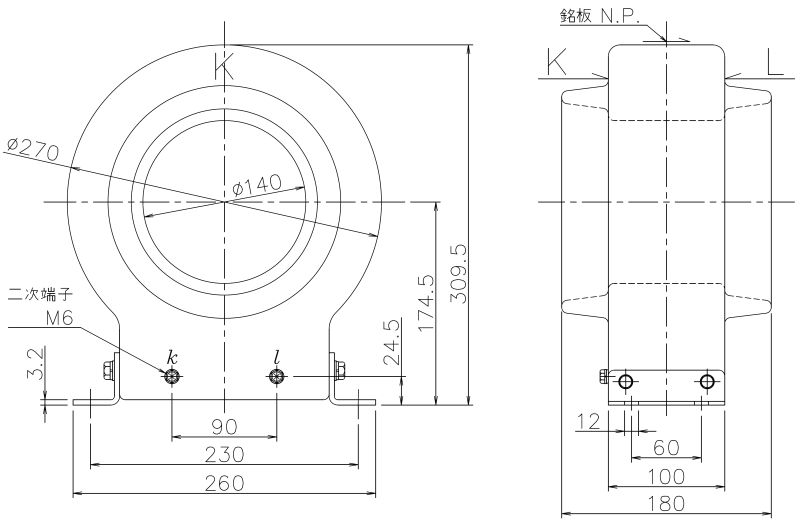

▲ER-48(C)

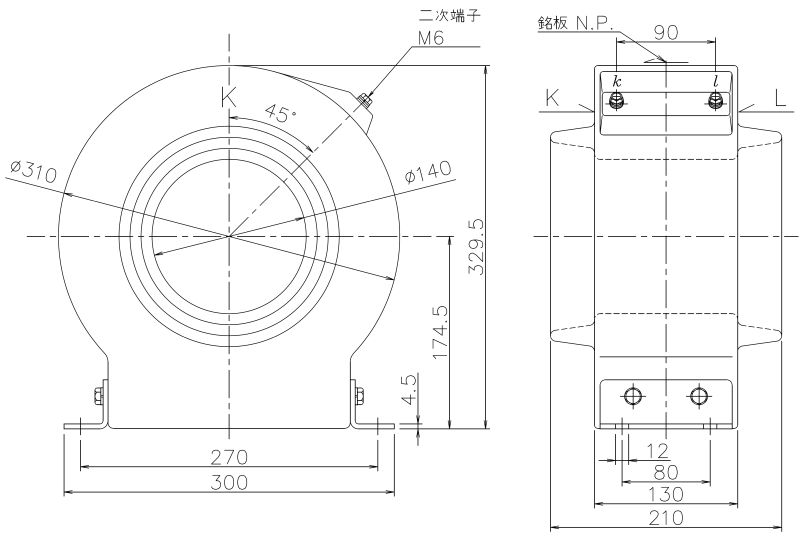

▲ER-80
