Unearthed voltage transformer

ＲＰ－６１１Ｎ　／　ＲＰ－６１２Ｎ　／　ＲＰ－６１３Ｎ

○Single phase / Unearthed

○For voltmeter / For relay

○Indoor use
RP-611N
Type

Ratio

(V)

Insulation level

(kV)

 Over voltage factor Availability
IEC-186 IEC 60044-2
IEC 61869-3
RP-611N 3300 / 110V
6600 / 110V		 7.2 / 20 / 60 1.2
(Continuous)		 50VA 1.0 －
RP-612N 100VA 1.0 100VA 1.0
(RP-612ND)
RP-613N 200VA 1.0 100VA 1.0
Primary fuse specification
Type Rated current Rated voltage Breaking current
PL-G T1A 7.2 / 3.6kV 40kA
RP-611N RP-612N

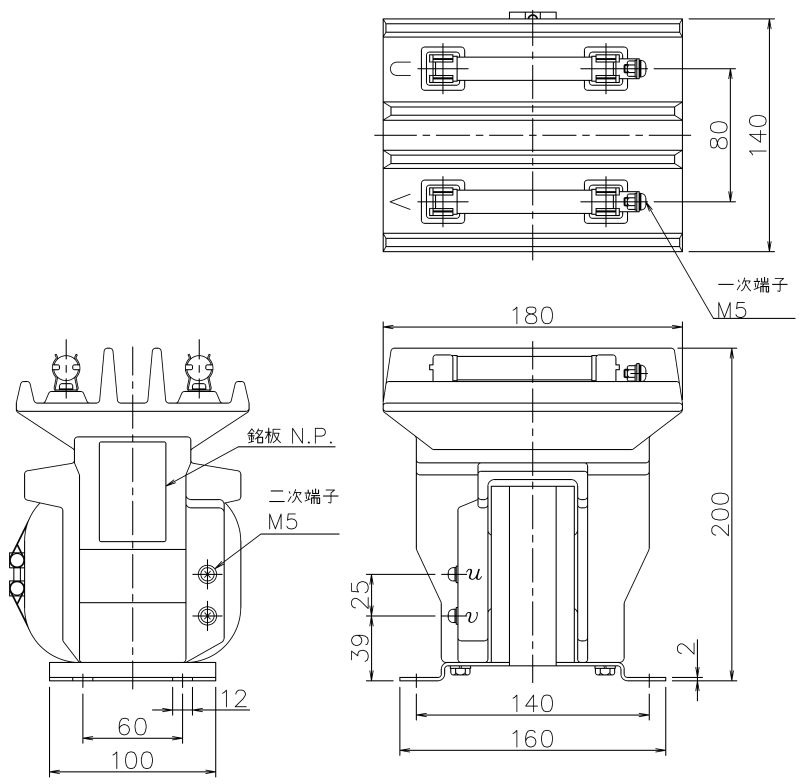

▲RP-611N

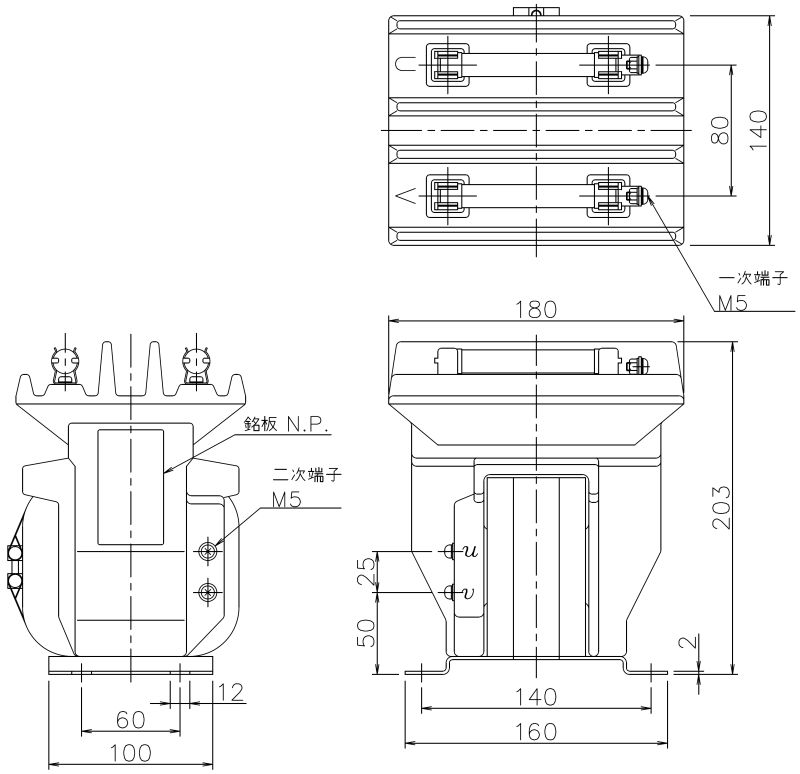

▲RP-612N

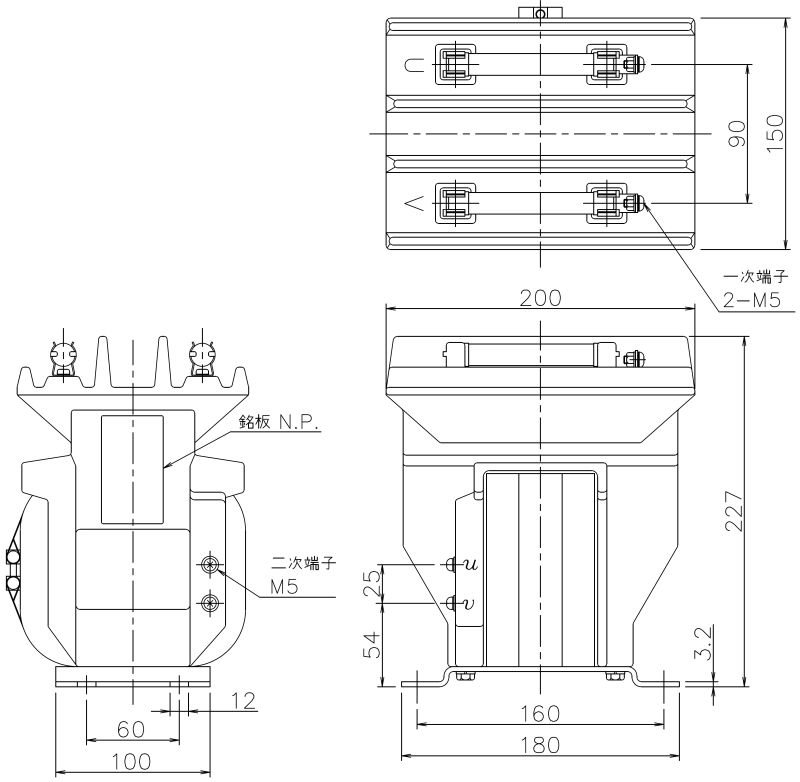

RP-613N

▲RP-613N
