Earthing voltage transformer

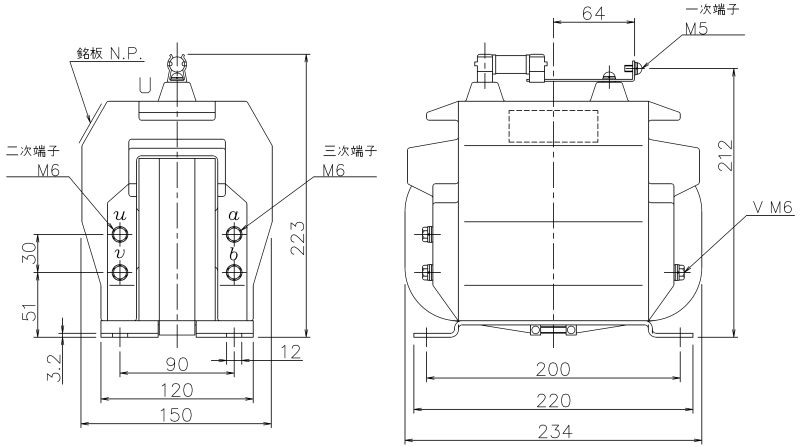

ＲＰＧ－１０３Ｎ |
○Single phase / Earthing
○For voltmeter / For relay
○Indoor use |
 |
| Type |
Ratio
(V) |
Insulation level
(kV) |
Over voltage factor |
Availability |
| IEC-186 |
IEC 60044-2
IEC 61869-3 |
| RPG-103N |
220/√3 / 110/√3 / 110/3(190/3)
440/√3 / 110/√3 / 110/3(190/3) |
0.72 / 3 / - |
1.9
(30s) |
200 / 200VA
1.0 / 3P |
200 / 200VA
1.0 / 3P |
|
| Primary fuse specification |
| Type |
Rated current |
Rated voltage |
Breaking current |
| PC1 |
5A |
500V |
50kA |
|
| EVTs shall be disconnected from the circuit of switchboard when withstand voltage test. |
 |
▼Connection diagram |
 |
 |
▲Secondary only |
▲With tertiary |
