Round window type CT (17.25kV / 23kV)

rishocast

EUT-10H / ER-356 / ER-354 / ER-533

○Cable / Busbar through type

○For ammeter / For relay

○Indoor use　
EUT-10H ER-356 ER-534 ER-533

▲EUT-10H

▲ER-356

▲ER-534

▲ER-533
Type

Ratio

(A)

 Rated output
(VA)		 Accuracy class Insulation level
(kV)		 Availability
IEC-185 IEC 60044-1
IEC 61869-2
EUT-10H 2000 ～ 6000 / 5 30 1.0 / 5P30 17.5 / 38 / 95 ○ ○
ER-356 2000 ～ 6000 / 5 , 1 24 / 50 / 125
ER-534 500 ～ 6000 / 5 , 1 1.0 / 5P10 24 / 50 / 125
ER-533 1500 ～ 4000 / 5 , 1 36 / 70 / 170 ―

Cable or Busbar should be installed with clearance of more than 20mm from surface of the wall.(EUT-10H)　

Cable or Busbar should be installed with clearance of more than 25mm from surface of the wall.(ER-356)　

Cable or Busbar should be installed with clearance of more than 30mm from surface of the wall.(ER-534)　

EUT-10H

▲EUT-10H

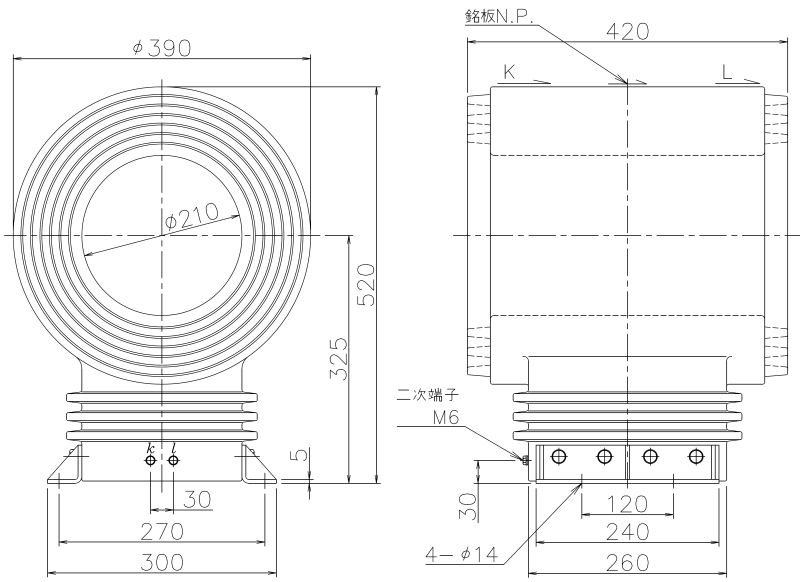

ER-356
