Round window type CT (6.9kV)

EUT-6-R / EUT-6-RN

○Cable / Busbar through type

○For ammeter / For relay

○Indoor use　

EUT-6-R

Type	Ratio (A)	Rated output (VA)	Accuracy class	Insulation level (kV)	Availability
					IEC-185	IEC 60044-1 IEC 61869-2
EUT-6-R	75 / 5 , 1	15	10P10	7.2 / 20 / 60	○	○
	100 ～2000 5, 1		1.0 / 5P15
EUT-6-RN	600-4000 / 5	30	1.0 / 5P10

Cable or Busbar should be installed with clearance of more than 5mm from surface of the wall.　

EUT-6-R

EUT-6-R

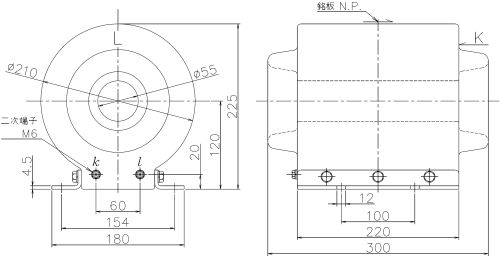

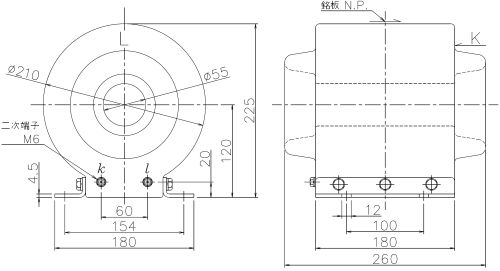

▲a type / Mass=38kg (Max.)

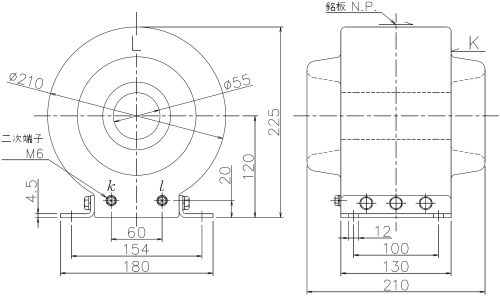

▲b type / Mass=30kg (Max.)

EUT-6-R

EUT-6-R

▲c type / Mass=25kg (Max.)

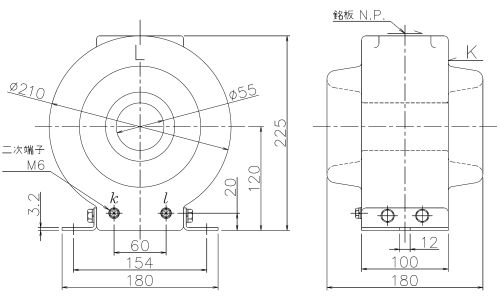

▲d type / Mass=17kg (Max.)

EUT-6-R

EUT-6-R

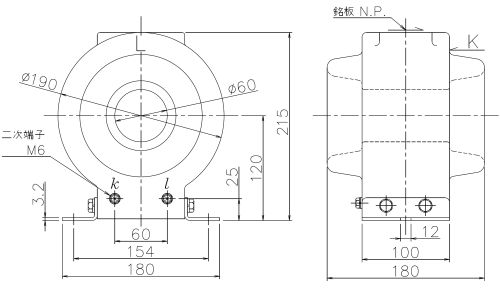

▲e type / Mass=13kg (Max.)

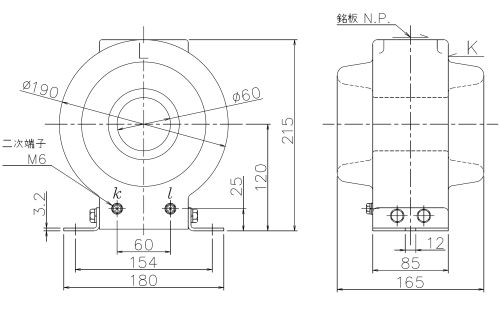

▲f type / Mass=12kg (Max.)

EUT-6-R

EUT-6-R

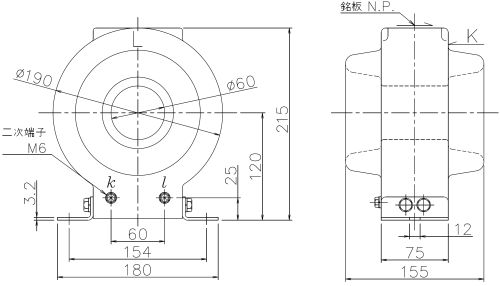

▲g type / Mass=11kg (Max.)

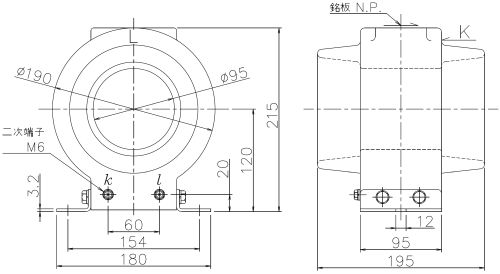

▲h type / Mass=10kg (Max.)

EUT-6-R

EUT-6-RN

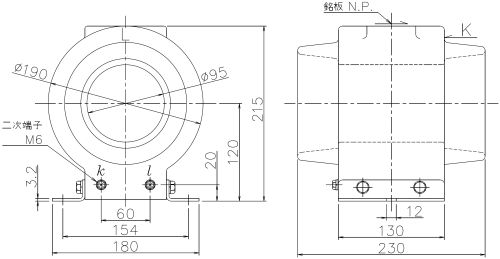

▲i type / Mass=13kg (Max.)

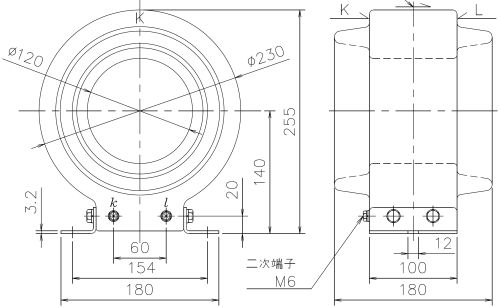

▲EUT-6-RN
