Bushing type CT

rishocast

RB-63B / RB-63C / RB-63D / RB-63E / RB-63F

○Bushing / Cable through type

○For ammeter / For relay

○Indoor use　
RB-63B
Type

Ratio

(A)

 Rated output
(VA)		 Accuracy class Insulation level
(kV)		 Applicable standard of production
IEC-185 IEC 60044-1
IEC 61869-2
RB-63B 300 ～ 3000 / 5 , 1 15 1.0 / 5P10 0.72 / 3 / - ○ ○
RB-63C
RB-63D 30
RB-63E
RB-63F 500 ～ 4000 / 5 , 1 15
RB-63B RB-63C

▲RB-63B

▲RB-63C
RB-63E

▲RB-63D

▲RB-63E

RB-63F

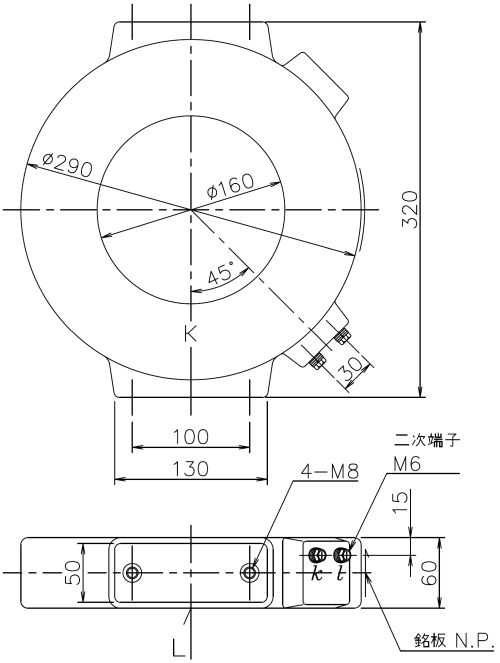

▲RB-63F
