Earthing voltage transformer

rishocast

RPG-F56

○Single phase / Earthing

○For voltmeter / For relay

○Indoor use
RPG-F56
Type Ratio Insulation level Over voltage factor Availability
IEC-186 IEC 60044-2
IEC 61869-3
RPG-F56 33000/√3 / 110/√3 / 110/3(190/3) 36 / 70 / 170 1.9
(30s)		 200 / 200VA
1.0 / 3P		 －
Primary fuse specification
Type Rated current Rated voltage Breaking current
JR-30/5 5A 36kV 25kA
EVTs shall be disconnected from the circuit of switchboard when withstand voltage test.

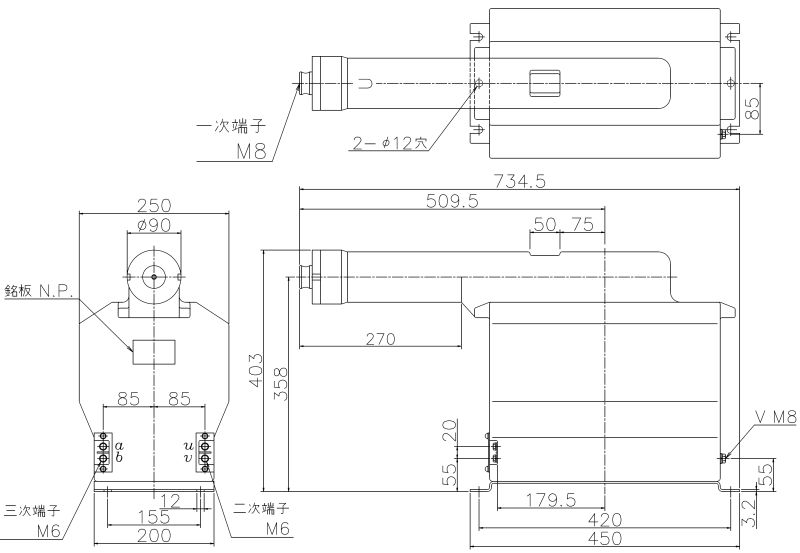

RPG-F56

▼Connection diagram

▲Secondary only

▲With tertiary
