Detector insulator has one or several ceramic capacitors connected in series built-in according to customer's use.
Hitherto,detector insulator is used to check the cable connected to the electric system " Live or Dead " by lighting neon lamp.
Nowadays, is also used as a sensor to detect zero phase voltage. |
|
▲Detector insulators |
 |
 |
▲Cross section |

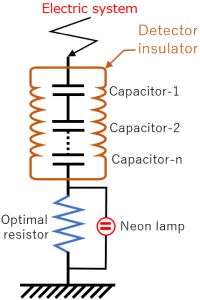

▲Connection example to light neon lump |
■Line ups |
Since ceramic capacitors are molded with epoxy resin, RISHOCAST detector insulators have excellent insulation reliability in spite of being compact.
Items with capacity of from 7.2kV to 36kV are available as standard.
Customized items to meet customer's specifications are also available. |
| Product code |
EMK-6
Outline drawing |
EMK-10
Outline drawing |
EMK-10N
Outline drawing |
EMK-20
Outline drawing |
EMK-20N
Outline drawing |
EMK-30N
Outline drawing |
| Test Items |
 |
 |
 |
 |
 |
 |
| Rated voltage |
kV |
7.2 |
12 |
15 |
24 |
24 |
36 |
| Power frequency withstand voltage(1min.) |
kV |
22 |
28 |
36 |
50 |
50 |
70 |
| Shock wave withstand voltage |
kV |
60 |
75 |
95 |
125 |
125 |
170 |
| Capacitance |
PF±10% |
250 |
250 |
125 |
125 |
125 |
83.3 |
Partial discharge voltage
(Detection sensitivity:10PC) |
kV |
7.2< |
12< |
15< |
24< |
24< |
36< |
Bending strength (RT / 1 min.) |
N |
3920 |
3920 |
3920 |
3920 |
3920 |
3920 |
| Surface leakage distance |
mm |
130 |
190 |
230 |
310 |
340 |
560 |
| Installed height |
mm |
90 |
115 |
145 |
190 |
210 |
310 |
| Diameter (Maximum) |
mmφ |
75 |
75 |
80 |
90 |
90 |
100 |
| Mass |
kg |
0.6 |
0.9 |
1.2 |
1.7 |
1.8 |
3.5 |
|
■As sensors of ZPD (Zero Phase Detector)
|
| RISHOCAST detector insulators can be used as a sensor of ZPD (Zero Phase Detector) to detect zero phase voltage as follows. |
|
■As voltage detective sensor of auto section switch |
| We also would like RISHOCAST detecor insulators could be used as a sensor of auto section switch in smart grid system as follows. |
|
|
|
