6kV Post insulator / Bending strenght 2450N
 |
| Type |
ES-6M-1
(EG40954)

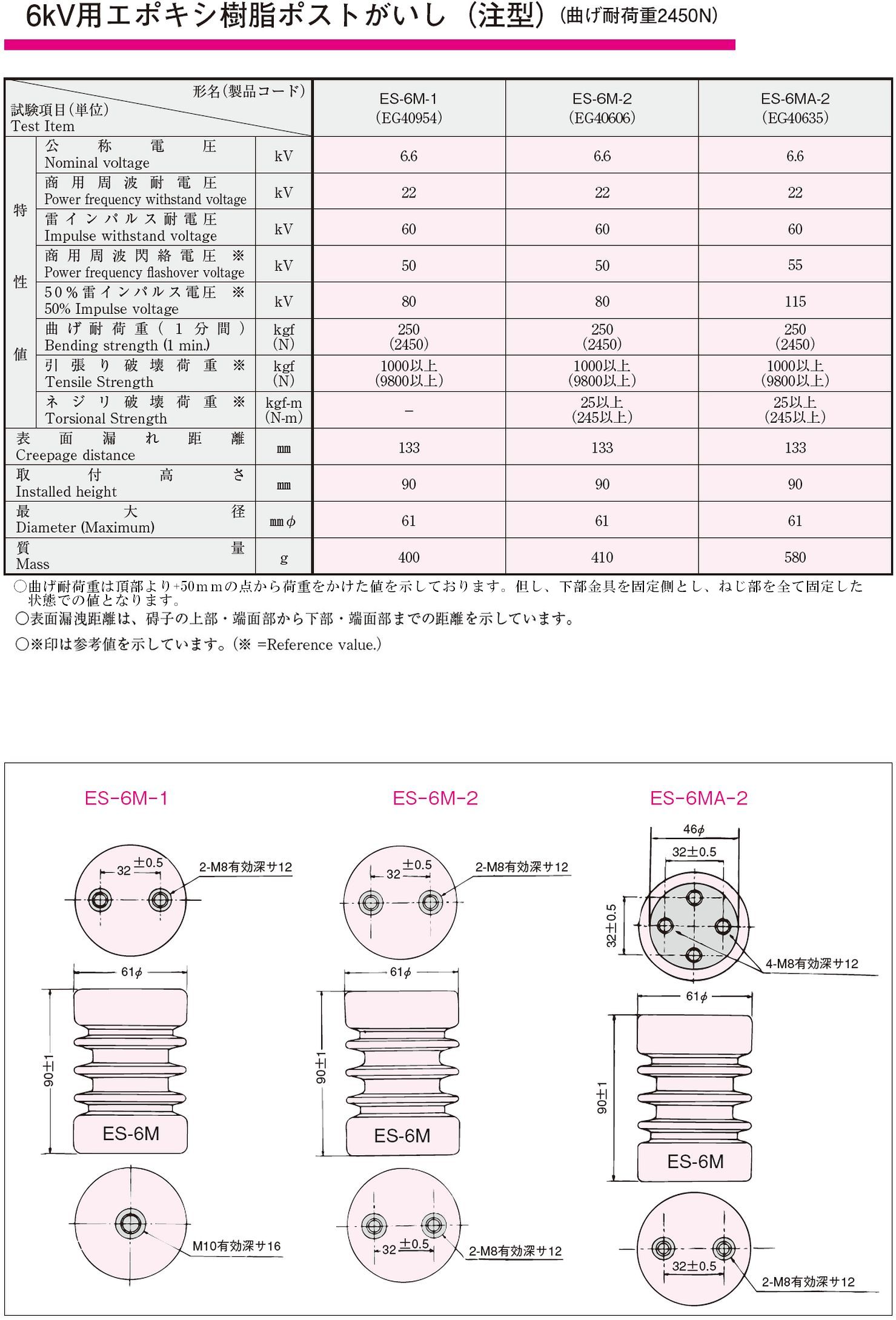

Outline drawing |
ES-6M-2
(EG40606)
Outline drawing |
ES-6MA-2
(EG40635)
Outline drawing |
| Test item |
Unit |
| Value |
Nominal voltage |
kV |
6.6 |
6.6 |
6.6 |
| Power-frequency withstand voltage |
kV |
22 |
22 |
22 |
| Impulse withstand voltage |
kV |
60 |
60 |
60 |
| Power-frequency flashover voltage※ |
kV |
50 |
50 |
55 |
| 50％ impulse voltage※ |
kV |
80 |
80 |
115 |
| Bending strength (RT / 1min.) |
N |
2450 |
2450 |
2450 |
| Tensile failing load※ |
N |
9800< |
9800< |
9800< |
| Torsional failing load ※ |
N-m |
－ |
245< |
245< |
| Creepage distance |
mm |
133 |
133 |
133 |
| Installed height |
mm |
90 |
90 |
90 |
| Max.diameter |
mmΦ |
61 |
61 |
61 |
| Mass |
g |
400 |
410 |
580 |
|
| |
- The load was applied from +50mm point to the specimen with tightening all the screws of the bottom mounting in order to measure bending strength.
- Creepage distance shows the length from the upper end to the bottom end along the fin surface.
- ※=reference value
- The above items are designed to be installed in general power switchboards and not fit to be exposed to insulation gas.
|
| |
