Epoxy cast resin electric device

Epoxy resin insulator

rishocast
Epoxy resin insulators with capacity of 3k - 70kV are available

Resin cast insulator /Line ups

Resin molded insulator /Line ups

Downsizing or weight saving is avaiable compared to porcelain insulator

Application example of epoxy resin insulator

3kV

Post insulator

6kV

Post insulator

(Lightweigt)

6kV

Post insulator

6kV

Post insulator

6kV

Post insulator

Bending strength

2450N

 Bending strength
1765N / 7061N

Bending strength

2450N

Bending strength

5880N / 8820N


EM-3

▲Cast type

RECL-22

▲Molded type


ES-6


EIH6A


ES-6M


EM-6

10kV Post

insulator

20～30kV Post

insulator

60～70kV

Post insulator

Detector

insulator

Cast resin bushing
EM-10

EM-7-

 EMK-6

(Relevant page)

 bushing

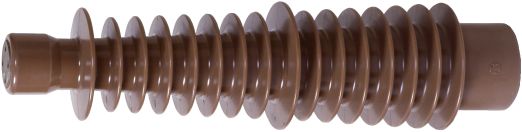

EM-60
▲EM-60

EM-70

▲EM-70

☆The above items are designed to be installed in general power switchboards and not fit to be exposed to insulation gas.


■Mounting clamp
Cable mounting clamp

Bus bar mounting clamp (Vertical type)

Bus bar mounting clamp (Horizontal type/Two-screw tightening)

Bus bar mounting clamp (Horizontal type/Four-screw tightening)
