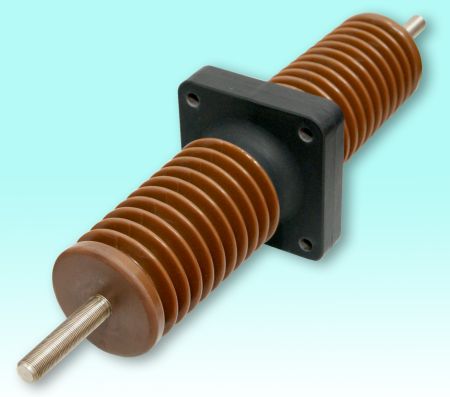

Epoxy bushing

RISHOCAST bushing can be installed in such many way as through from air to oil, air to air , oil to oil , or air to gas.

Type			ECB-3 Outline drawing	ECB-6 Outline drawing	ECB-10N Outline drawing	ECB-20 Outline drawing	ECB-30 Outline drawing
Test item		Unit	ECB-3 Outline drawing	ECB-6 Outline drawing	ECB-10N Outline drawing	ECB-20 Outline drawing	ECB-30 Outline drawing
Value	Nominal voltage	kV	3.3	6.6	15	22	33
	Rated voltage	kV	3.6	7.2	16.5	24	36
	Impulse withstand voltage	kV	45	60	95	125	170
	Power-frequency withstand voltage	kV	16	22	36	50	70
